Cartridges / Styli

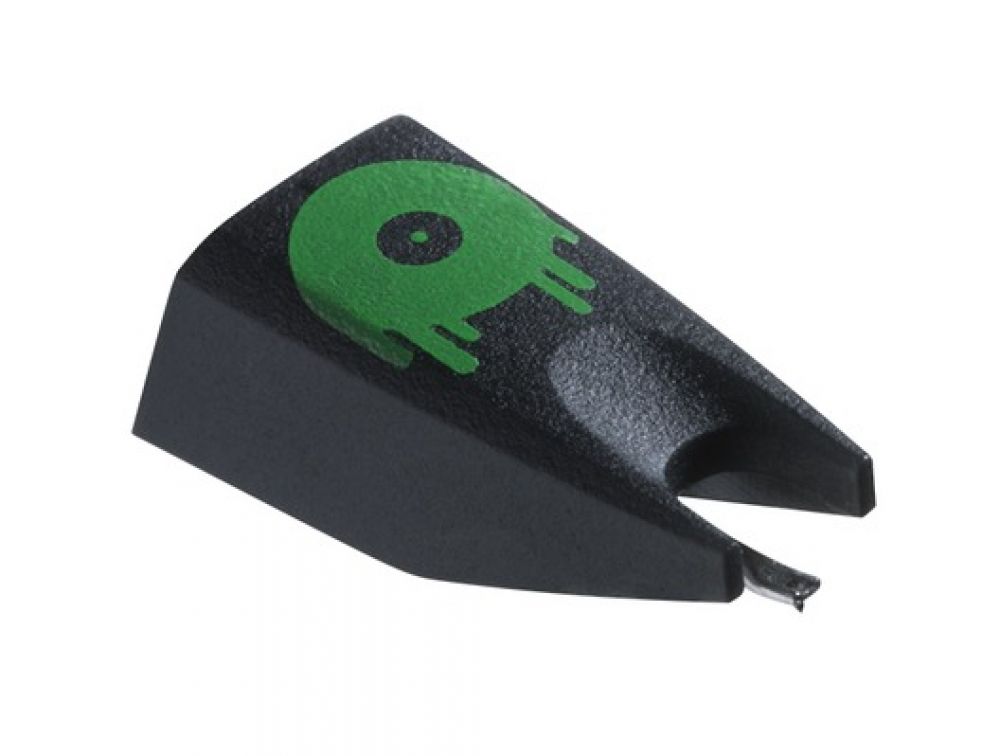

Replacement Stylus for Concorde MKII Mix
OrtofonCONCORDEMKIIMIXSTYLUS
Cartridges / Styli
£30.83 (£36.99 incl. VAT)
Barcode: 705796141009
Rather than having to buy a whole new cartridge, the Ortofon Stylus Mix allows you to replace your old stylus on the Ortofon Concorde MKII Mix cartridge and replace it with this brand new one!
The new shape of the stylus allows you to accurately drop the needle on a specific part of a record. The point of contact between the needle and record is very clear from any angel. The body is wider and provides easier grip and handling.
Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.
Features:
- Larger, wider and more robust stylus body
- Easier to grip and handle
- Better fix by metal spring
- Tactile feedback of correct mount
- Large stylus viewing cutout
Specifications:
- Output voltage at 1000Hz, 5cm/sec. - 6 mV
- Channel balance at 1kHz - 1,5 dB
- Channel separation at 1kHz - 20 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at -3dB - 20-20.000 Hz
- Tracking ability at 315 Hz at recommmended tracking force - 100 μm
- Compliance, dynamic lateral - 14 μm/m N
- Stylus type - Spherical R 18 μm
- Tracking force range - 2 - 4 g
- Tracking force recommended - 3 g
- Recommended exclusively for Concorde MKII MIX
