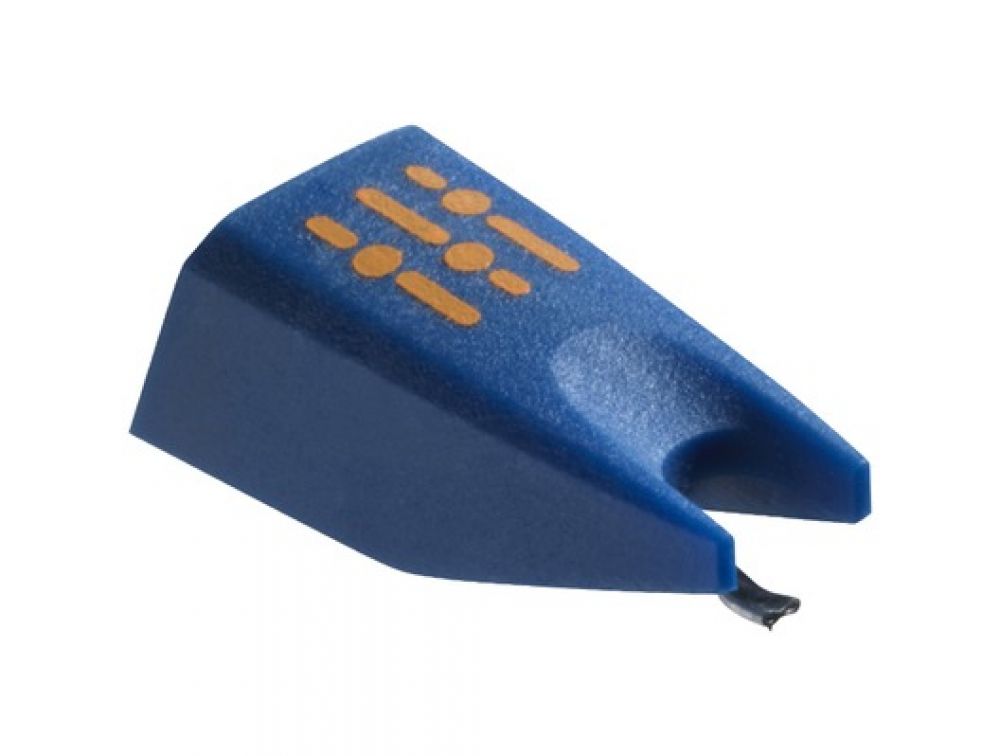

Replacement Stylus for Concorde MKII DJ
OrtofonCONCORDEMKIIDJISTYLUS
Cartridges / Styli
£37.49 (£44.99 incl. VAT)
Barcode: 705796140057
The Ortofon DJ Stylus is a replacement stylus for the Ortofon Concorde MKII DJ cartridge and can really be a lifeline for any DJ who mid-set realises they need a new stylus!
The new shape of the stylus allows you to accurately drop the needle on a specific part of a record. The point of contact between the needle and record is very clear from any angel. The body is wider and provides easier grip and handling.
Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.
Features:
- Larger, wider and more robust stylus body
- Easier to grip and handle
- Better fix by metal spring
- Tactile feedback of correct mount
- Large stylus viewing cutout
Specifications:
- Output voltage at 1000Hz, 5cm/sec. - 6 mV
- Channel balance at 1kHz - 1 dB
- Channel separation at 1kHz - 22 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at -3dB - 20-20.000 Hz
- Tracking ability at 315 Hz at recommmended tracking force - 100 μm
- Compliance, dynamic lateral - 14 μm/m N
- Stylus type - Spherical R 18 μm
- Tracking force range - 3 - 5 g
- Tracking force recommended - 4 g
- Recommended exclusively for Concorde MkII DJ
